High Reliability Dental X Ray Machine Parts , W Filament 0.4 Focus X Ray Tube

Ask Lasest Price
Brand Name :	SAILRAY
Model Number :	KL11-0.4-70
Certification :	SFDA
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	1000PCS/MONTH
Delivery Time :	30DAYS
Price :	Negotiation

Add to Cart

Product Details
Company Profile

High Reliability Dental X Ray Machine Parts , W Filament 0.4 Focus X Ray Tube

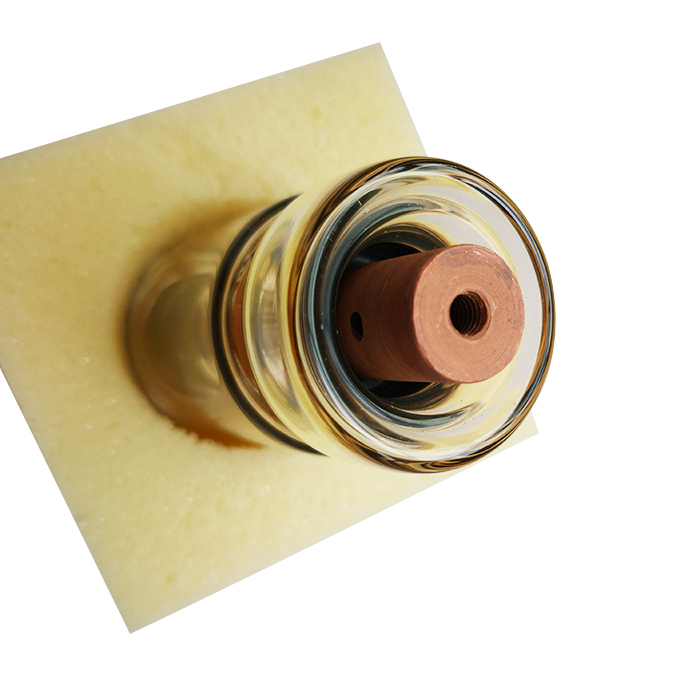

High Reliability 70KV 0.4 Focus Dental X-ray Tube Use for dental x ray machine

Quick Detail:

1. Model: KL11-0.4-70

2. Equivalent to TOSHIBA D-041

3. Integrated high quality glass tube

4. Maximum Tube Voltage:70Kv

5. Maximum power (at 1.0s):430 W

Specifications:

Maximum Tube Voltage...................................................................................................................................................70kV

MaximumTube Current....................................................................................................................................................9mA

Maximum power (at 1.0s).............................................................................................................................................430 W

Maximum anode cooling Rate.....................................................................................................................................110W

Max.Anode Heat Content................................................................................................................................................4.3kJ

Filament Characteristics..............................................................................................................Ifmax=3.0A,Uf=3.2±0.5V

Focal spot.............................................................................................................................................0.4(IEC 60336 2005)

Target Angle..........................................................................................................................................................................12°

Target Material..........................................................................................................................................................Tungsten

Cathode type...........................................................................................................................................................W filament

Permanent Filtration...............................................................................................Min. 0.5mmAl/50 kV(IEC60522/1999)

Dimensions....................................................................................................................67mm length by 30mm diameter

Weight......................................................................................................................................................................100 grams

For more type of our x-ray tube, please see the following chart:

BRIEF SPEC.OF STATIONARY ANODE X-RAY TUBE
Type	Equivalent	Nominal Focal Spot Value	Max Rating (W)	Max. Voltag (kV)	Filament Characteristics	Target Angle ( °)	Anode Heat Content(KJ)	Dimension
Type	Equivalent	Nominal Focal Spot Value	Max Rating (W)	Max. Voltag (kV)	Filament Characteristics	Target Angle ( °)	Anode Heat Content(KJ)	Length ×Diameter
KL1-0.8-70	CEI OX/70-P	0.8	840	70	2.2A 3.6V	19	7	80×30
KL11-0.4-70	Toshiba D-041	0.4	430	70	3A 3.2V	12	4.3	67×30
KL12-1.5-85		1.5	1800	85	2.5A 2.8V	23	10	105×30
KL27-0.8-70	CEI OX/70-M	0.8	840	70	2.1A 2.8V	19	7	72×30
XD2-1.4/85		1.5	1800	85	2.6A 3.0V	23	10	105×30
XD3- 3.5/100		2.6	3500	100	4.5A 7V	19	30	180×51
XD3A- 3.5/105X	CEI OX105-4	2.6	3500	100	4.5A 7V	19	30	178×51
