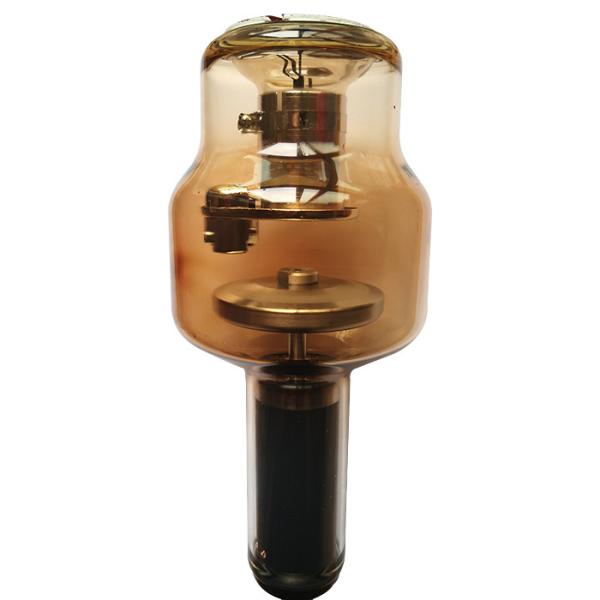

T High Speeding Rotating Anode X-ray Tube Equivalent to VARIAN
RAD-14
ECHNICAL DATA
- Designed for Medical diagnosis x-ray unit
- Nominal Tube Voltage: 150KV,Small focal spot: 0.6,Big focal spot:
1.2(IEC60336/2005)
- Equivalent to VARIAN RAD-14,Toshiba E-7252
- Tube Target Diameter: 73mm
INSERT SPECIFICATIONS
Maximum Operating
Voltage......................................................................................150KV
Focal Spot
Size..........................................................................................................0.6/1.2
Diameter.....................................................................................................................73mm
Target
Material..............................................................................................................RTM
Anode
Angle....................................................................................................................12°
Rotation
Speed............................................................................................2800/8400RPM
Heat
Storage...........................................................................................................300KHU
Maximum Continuous
Dissipation...............................................................................750W
Maximum Filament Current
Large
Focus…………................................................................……………………..5.4A
Small
Focus…………................................................................……………………..5.4A
Inherent
Filtration................................................................1mmAl/75KV(IEC60522/1999)
Maximum Power(0.1S)
(50/60Hz)………….………..........................................................................20KW/50KW
(150/180Hz)………….………......................................................................30KW/74KW
Applications:
SRMWTX73-0.6/1.2-150H rotating anode X-Ray Tube is especially
designed for Medical diagnosis x-ray unit.
OUTLINE DRAWING:
Detailed Images
For more type of our rotating anode x-ray tubes, please see the
following chart:
| Type | Focal
spot | Max rating(kW) | Max
voltage
(kV) | Max tube current
(mA) | Target
angle() | Target
material | Dimension
(mm) | Rotation
rate
(W/min) | Max anode
heat content
(KHU) | Max anode
continuous heat dissipation(W) |
|
|
| MWTX64-0.3/0.6-130 | 0.3/0.6 | 5/17(50Hz) | 130 | 110/360 | 10° | RTM | 218×Φ80 | 2800 | 210 | 300 |
| MWTX64-0.6/1.3-130 | 0.6/1.3 | 11/32(50Hz) | 130 | 250/700 | 15° | RTM | 218×Φ80 | 2800 | 110 | 300 |
| MWTX64-0.8/1.8-130 | 0.8/1.8 | 12/33(50Hz) | 130 | 180/480 | 15° | RTM | 218×Φ80 | 2800 | 70 | 175 |
| MWTX64-0.6/1.3-130H | 0.6/1.3 | 20/54(150Hz) | 130 | 400/880 | 15° | RTM | 218×Φ80 | 2800/8400 | 110 | 300 |
| MWTX70-1.0/2.0-125 | 1.0/2.0 | 21/42.5(50Hz) | 125 | 340/570 | 16 | RTM | 250×Φ108 | 2800 | 140 | 475 |
| MWTX71-0.6/1.2-125 | 0.6/1.2 | 20/40(50Hz) | 125 | 350/750 | 12.5 | RTM | 250×Φ108 | 2800 | 150 | 500 |
| MWTX72-1.0/2.0-125 | 1.0/2.0 | 20/40(50Hz) | 125 | 380/800 | 16° | TM | 250×Φ108 | 2800 | 140 | 410 |
| MWTX72-1.0/2.0-150 | 1.0/2.0 | 20/40(50Hz) | 150 | 380/800 | 16° | TM | 250×Φ108 | 2800 | 140 | 410 |
| MWTX73-0.6/1.2-150 | 0.6/1.2 | 20/50(50Hz) | 150 | 400/1fff | 12° | RTM | 250×Φ108 | 2800 | 300 | 750 |
| MWTX74-0.6/1.2-150 | 0.6/1.2 | 20/46(50Hz) | 150 | 370/760 | 12 | RTM | 250×Φ108 | 2800 | 150 | 475 |
| MWTX75-0.6/1.2-150 | 0.6/1.2 | 20/50(50Hz) | 150 | 300/700 | 12 | RTM | 250×Φ108 | 2800 | 220 | 750 |
| MWTX76-0.6/1.2-150 | 0.6/1.2 | 20/50(50Hz) | 150 | 300/700 | 12 | RTM | 250×Φ108 | 2800 | 300 | 870 |
| MWTX78-0.6/1.5-125 | 0.6/1.5 | 18/47.5(50Hz) | 125 | 260/750 | 14° | RTM | 250×Φ108 | 2800 | 200 | 410 |
| MWTX90-0.6/1.2-150 | 0.6/1.2 | 19/50(50Hz) | 150 | 350/800 | 12° | RTM | 265×Φ120 | 2800 | 300 | 500 |
| MWTX90-1.0/2.0-150 | 1.0/2.0 | 30/50(50Hz) | 150 | 400/700 | 16° | RTM | 265×Φ120 | 2800 | 200 | 490 |
