    Glass X Ray Tube Parts Of Dental X ray Machine ,DC high frequcncy X Ray Tube

    Ask Lasest Price
    Brand Name : SAILRAY
    Model Number : KL11-0.4-70
    Certification : SFDA
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1000PCS/MONTH
    Delivery Time : 30DAYS
    Price : Negotiation
    • Product Details
    • Company Profile

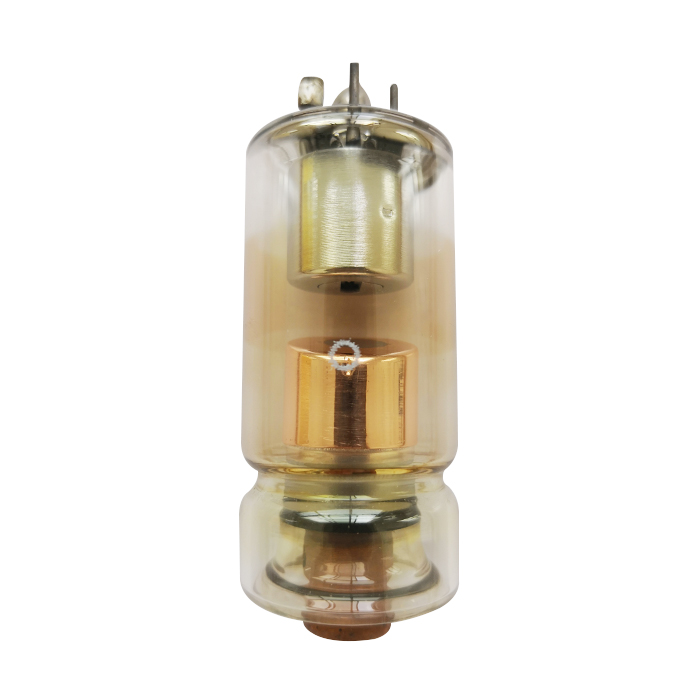

    Glass X Ray Tube Parts Of Dental X ray Machine ,DC high frequcncy X Ray Tube

    0.4 Focal spot Stationary Anode Dental X-ray Tube D-041 Use for Dental X-ray unit


    TECHNICAL DATA

    • Maximum Tube Voltage……………………………………..….………..……....…………70kV
    • Maximum Tube Current……………………………..….……….…………………..……...9mA
    • Maximum power (at 1.0s)………………………………………….……….……..............430 W
    • Maximum anode cooling Rate………………………………………………………..……110W
    • Max. Anode Heat Content………….……….…………………..……………………...…..4.3kJ
    • Filament Characteristics……………………………………………...Ifmax=3.0A,Uf=3.2±0.5V
    • Focal Spot ..…………………………………………………….……….…0.4(IEC 60336 2005)
    • Target Angle……………………………………………………………….…………………..12°
    • Target Material………………………………………………………………….……….Tungsten
    • Cathode type……………………….…………………………………………….…….W filament
    • Permanent Filtration………..…………..……………...Min. 0.5mmAl/50 kV(IEC60522/1999)
    • Dimensions………………………………..…………….…….67mm length by 30mm diameter
    • Weight…………………………………………………………………………….…….100 grams

    Application


    ​ This tube is especially designed for dental radiography unit and is available for a nominal tube

    voltage with constant potential (DC).






    For more type of our x-ray tube, please see the following chart:


    BRIEF SPEC.OF STATIONARY ANODE X-RAY TUBE
    TypeEquivalentNominal Focal Spot Value

    Max

    Rating

    (W)

    Max.

    Voltag

    (kV)

    		Filament Characteristics

    Target

    Angle

    ( °)

    Anode

    Heat

    Content(KJ)

    		Dimension

    Length

    ×Diameter

    KL1-0.8-70CEI OX/70-P0.8840702.2A 3.6V19780×30
    KL11-0.4-70Toshiba D-0410.4430703A 3.2V124.367×30
    KL12-1.5-851.51800852.5A 2.8V2310105×30
    KL27-0.8-70CEI OX/70-M0.8840702.1A 2.8V19772×30
    XD2-1.4/851.51800852.6A 3.0V2310105×30
    XD3-
    3.5/100    		2.635001004.5A 7V1930180×51
    XD3A-
    3.5/105X    		CEI OX105-42.635001004.5A 7V1930178×51
