100KV High Vacuum Diagnostic Stationary Anode X-ray tube for C-Arm machine

Quick Detail:

Type:Station anode x-ray tube

Application: For general diagnostic x-ray unit

Model: XD6-1.1,3.5/100

Integrated high quality glass tube

Description:

This tube, XD6-1.1,3.5/100 is especially designed for general diagnostic x-ray unit and is available for a nominal tube voltage with self-rectified circuit.

XD6-1.1,3.5/100 tube has two focus.

The integrated high quality tube with glass design has one super imposed focal spot and a

reinforced anode.

The high anode heat storage capacity ensures a wide range of applications for general diagnostic x-ray application. A special designed anode enables an elevated heat dissipation rate which leads to a higher patient throughput and a longer product life. A constant high dose yield during the entire tube life is ensured by the high density tungsten target. Ease of integration into system products is facilitated by extensive technical support.

Applications:

This tube, XD6-1.1,3.5/100 is especially designed for general diagnostic x-ray unit and is available for a nominal tube voltage with self-rectified circuit.

Specifications:

Nominal Voltage............................................................................................................................................................100KV

Nominal Focal Spot (IEC336).....................................................................................................................................1.0, 2.6

Is Exposure rating...........................................................................................................................................1100W, 3500W

Filament Characteristics...........................................................................................................3.7±0.6V/4.5A, 7.8±0.8V/4.5A

Target Material...........................................................................................................................................................Tungsten

Target Angle.........................................................................................................................................................................19°

Anode Heat Storage Capacity.........................................................................................................................................30kJ

Continuous Rating..........................................................................................................................................................350W

Inherent Filtration.......................................................................................................................Min. 0.6mmmAl Equivalent

Competitive Advantage:

Elevated anode heat storage capacity and cooling

Constant high dose yield

Excellent lifetime

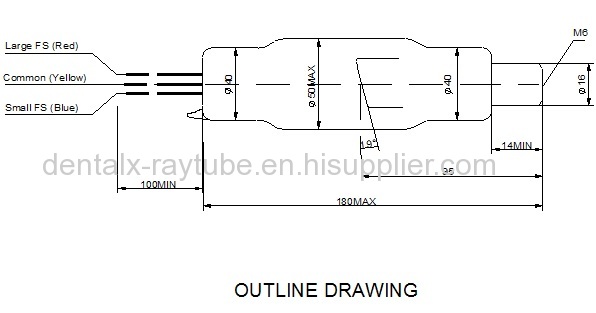

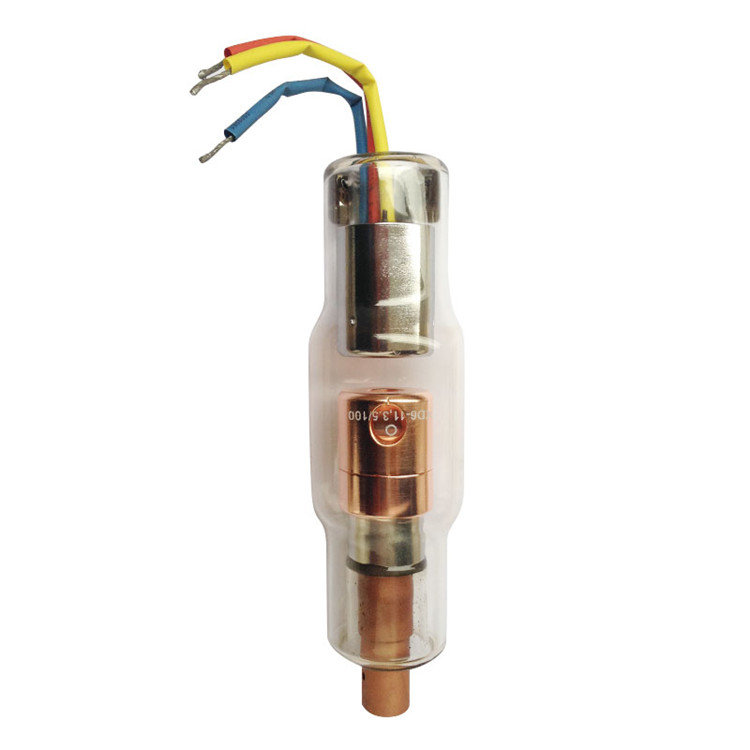

Detailed Images
