Digital Medical Device Stationary Anode Tube Insertion for Diagnostic X-ray System

Quick Detail:

Type: Station anode x-ray tube

Application: For general diagnostic x-ray unit

Model: XD3-3.5/100

Integrated high quality glass tube

Description:

This tube, XD3-3.5/100 is designed for general diagnostic x-ray unit and available for a nominal tube voltage with self-rectified circuit.

XD3-3.5/100 tube has two focus.

The integrated high quality tube with glass design has one super imposed focal spot and a reinforced anode.

The high anode heat storage capacity ensures a wide range of applications for general diagnostic x-ray application. A special designed anode enables an elevated heat dissipation rate which leads to a higher patient throughput and a longer product life. A constant high dose yield during the entire tube life is ensured by the high density tungsten target. Ease of integration into system products is facilitated by extensive technical support

Specifications:

Nominal Tube Voltage..........................................................................................................................................................100kV

Nominal Focal Spot....................................................................................................................................2.6 (IEC60336/1993)

Max. Anode Heat Content .................................................................................................................................................35000J

Target Angle.................................................................................................................................................................................19°

Filament Characteristics......................................................................................................................If max= 4.5A , Uf= 7±0.8

Permanent Filtration........................................................................................................Min. 1mmAl/ 50kv (IEC60522/1999)

Target Material.................................................................................................................................................................Tungsten

Max Rating............................................................................................................................................................................3500W

Competitive Advantage:

Elevated anode heat storage capacity and cooling

Constant high dose yield

Excellent lifetime

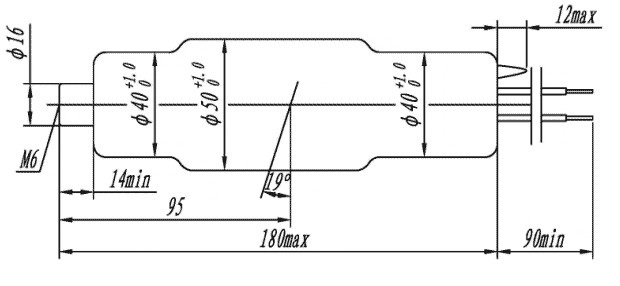

Detailed Images

For more type of our x-ray tube, please see the following chart:

SAILRAY MEDICAL is a professional manufacturer and supplier of xray tube, x-ray exposure hand switch, x-ray collimator, lead glass, high voltage cables and so on related x-ray imaging systems in China. We specialized in x-ray filed for over 15years. With the over 15 years of experience, we supply products and service to lots of countries all over the world and get very good reputation.

Sailray medical owns two facilities in Zhejiang and Jiangsu Province which have the most advanced equipment composed of the production line of x-ray tube. With powerful technology background, we have an energetic team who are experienced engineers and technicians in x-ray field who design, develop and produce the products. By a rigorous team who make the quality control to ensure the high quality of our product lines, our products have got the certification of SFDA, ISO and got the approval of CE, ROHS, etc.

Sailray medical dedicated to offer solutions for products required todesign and manufacture the medical x-ray systems and industry x-ray

imaging systems. We are always your best and trust-able partner.
