Digital Medical Device Stationary Anode Tube Insertion for Diagnostic X-ray System

Description:

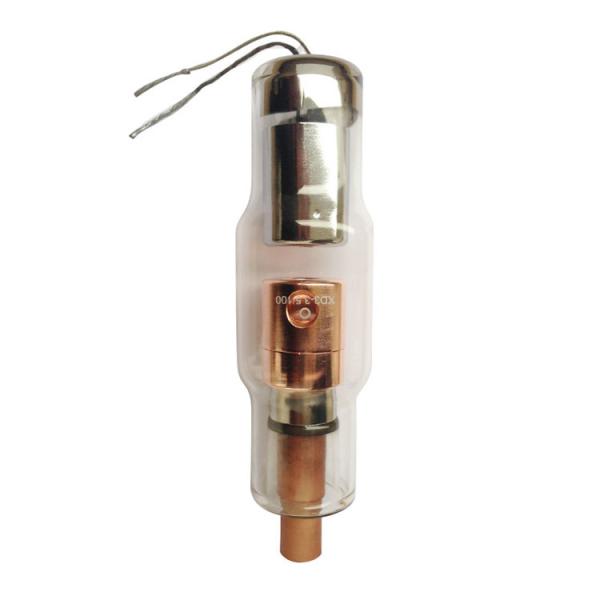

This tube, XD3-3.5/100 is designed for general diagnostic x-ray unit and available for a nominal tube voltage with self-rectified circuit.

XD3-3.5/100 tube has two focus.

The integrated high quality tube with glass design has one super imposed focal spot and a reinforced anode.

The high anode heat storage capacity ensures a wide range of applications for general diagnostic x-ray application. A special designed anode enables an elevated heat dissipation rate which leads to a higher patient throughput and a longer product life. A constant high dose yield during the entire tube life is ensured by the high density tungsten target. Ease of integration into system products is facilitated by extensive technical support

Quick Detail:

Type: Station anode x-ray tube

Application: For general diagnostic x-ray unit

Model: XD3-3.5/100

Integrated high quality glass tube

Specifications:

Nominal Tube Voltage..........................................................................................................................................................100kV

Nominal Focal Spot....................................................................................................................................2.6 (IEC60336/1993)

Max. Anode Heat Content .................................................................................................................................................35000J

Target Angle.................................................................................................................................................................................19°

Filament Characteristics......................................................................................................................If max= 4.5A , Uf= 7±0.8

Permanent Filtration........................................................................................................Min. 1mmAl/ 50kv (IEC60522/1999)

Target Material.................................................................................................................................................................Tungsten

Max Rating............................................................................................................................................................................3500W

Competitive Advantage:

Elevated anode heat storage capacity and cooling

Constant high dose yield

Excellent lifetime

Detailed Images
