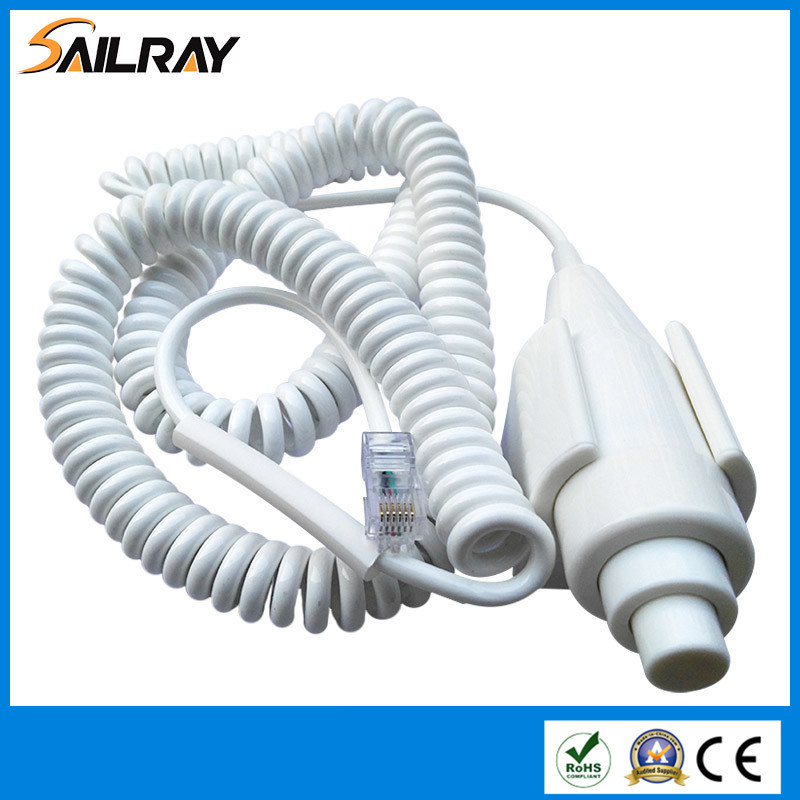

Two Step X Ray Hand Switch with RJ45 connector for x-ray machine

Performance Parameters( 3cores and 4 cores):

Quick Detail:
Model: HS-01
Type: Two step
Construction and material: with RJ45 connector, PU coil cord cover and copper wires
Wires and coil cord: 3cores or 4cores, 2.2m or 5m
Mechanical life: 1.0 million times
Electrical life: 100 thousand times
Certification: CE, CQC, RoHS
Connector: can fixed to RJ12,RJ45,DB9 connector or Air plug


Competitive Advantage:
Better performance with Omron micro switch
Better elasticity of coil cord with PU cover and pure copper wire
Longer Mechanical life and Electrical life
CE, CQC, ROHS approval.


Applications:
X-ray exposure Hand switch is the electric control parts, can be used for controlling the on-off of electrical signal, photographic equipment and medical diagnostic X-ray photography exposure

Type and Useful time:

Cores:................................................................................................three cores, four cores
Type:.................................................................................................. two step
Useful time(Mechanical life): .......................................................1.0 million times---50 million times
Useful time(Electrical life): ...........................................................100 thousand times---300 thousand times


Operation Method:
When pressing the button, it is connected while loosing it is cut. Press the button to the first stage, the first grade is connected. This is for x-ray preparation. Then do not loose your thumb, and press the button to the bottom, the second grade is connected while the first grade remains connected. This is for x-ray operation.


Transportation and Storage Conditions:

More detail:

SAILRAY MEDICAL is a professional manufacturer and supplier of xray tube, x-ray exposure hand switch, x-ray collimator, lead glass, high voltage cables and so on related x-ray imaging systems in China. We specialized in x-ray filed for over 15years. With the over 15 years of experience, we supply products and service to lots of countries all over the world and get very good reputation.

Sailray medical owns two facilities in Zhejiang and Jiangsu Province which have the most advanced equipment composed of the production line of x-ray tube. With powerful technology background, we have an energetic team who are experienced engineers and technicians in x-ray field who design, develop and produce the products. By a rigorous team who make the quality control to ensure the high quality of our product lines, our products have got the certification of SFDA, ISO and got the approval of CE, ROHS, etc.

Sailray medical dedicated to offer solutions for products required todesign and manufacture the medical x-ray systems and industry x-ray

imaging systems. We are always your best and trust-able partner.
