1 Phase Stator 70V DC Digital X Ray Machine For Fluoroscopic Workstations

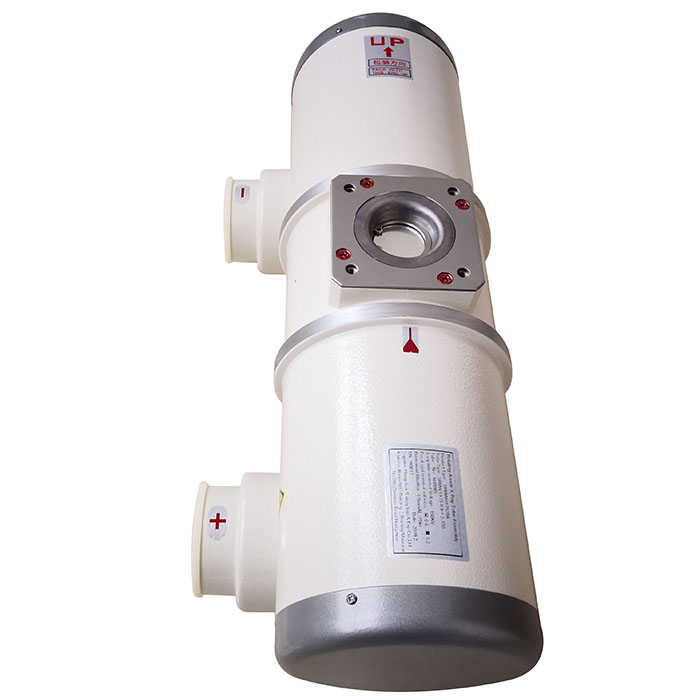

125kV Rotating anode X‐Ray tube assembly for CR or DR machine Equivalent To: Toshiba E7239

Stator key values

1-phase stator

Test point	C-M	C-A
Winding resistance	≈18.0…22.0Ω	≈45.0…55.0Ω
Max.permissible operating voltage(run-up)	230V±10%
Recommend operating voltage(run-up)	160V±10%
Braking voltage	70VDC
Run-on voltage in exposure	80Vrms
Run-on voltage in fluoroscopy	20V-40Vrms
Run-up time(depending on starter system)	1.2s

Quick Detail:

◆ X-ray tube assembly for all routine diagnostic examinations with conventional or digital radiographic and fluoroscopic workstations

◆ The insert features: 16° Rhenium-Tungsten molybdenum target (RTM)
◆ Focal spots: Small 1.0, Large: 2.0
◆ Maximum tube voltage: 125kV
◆ Accommodated with IEC60526 type high-voltage cable receptacles
◆ High voltage generator should accord with IEC60601-2-7
◆ IEC Classification (IEC 60601-1:2005): Class I ME EQUIPMENT

◆ Equivalent To: Toshiba E7239

Description

● The designation is composed as follows:

SRMWHX7010	Tube	A	High voltage socket with 90 degree direction
SRMWHX7010	SRMWTX70-1.0/2.0-125	B	High voltage socket with 270 degree direction

Technical Data

Property	Specification		Standard
Nominal input power(s) of the anode	F 1	F 2	IEC 60613
Nominal input power(s) of the anode	21kW(50/60Hz)	42.5kW(50/60Hz)
Anode heat storage capacity	100 kJ ( 140kHU)		IEC 60613
Maximum cooling capacity of the anode	475W
Heat storage capacity	900kJ
Max. continuous heat dissipation without Air-circular	180W
Anode material Anode top coating material	Rhenium-Tungsten-TZM(RTM) Rhenium-Tungsten-(RT)
Target angle (Ref: reference axis)	16 °		IEC 60788
X-ray tube assembly inherent filtration	1.5 mm Al / 75kV		IEC 60601-1-3
Focal spot nominal value(s)	F1(small focus)	F2(large focus)	IEC 60336
Focal spot nominal value(s)	1.0	2.0
X-ray tube nominal voltage Radiographic Fluoroscopic	125kV 100kV		IEC 60613
Data on cathode heating Max. current Max voltage	≈ /AC, < 20 kHz
	F1	F 2
	5.1A ≈5.8～7.8V	5.1 A ≈7.7～10.4 V
Leakage radiation at 150 kV / 3mA in 1m distance	≤ 1.0mGy/h		IEC60601-1-3
Maximum radiation field	573×573mm at SID 1m
X-ray tube assembly weight	Approx. 18 kg

Conditions for operation,storage and transport

Limits	Operation Limits	Transport and Storage Limits
Ambient temperature	From 10℃to 40℃	From- 20℃to 70℃
Relative humidity	≤75%	≤93%
Barometric pressure	From 70kPa to 106kPa	From 70kPa to 106kPa

More Detailed Images

More product:

Type	Focal spot	max.rating(KW)	Max voltag(kV)	Target angle()	Target material	Rotation rate(W/min)	Max component heat content(KJ)	Max anode heat content(KHU)	Max anode continuous heat dissipation(W)
Type	Focal spot	max.rating(KW)	Max voltag(kV)	Target angle()	Target material	Rotation rate(W/min)	Max component heat content(KJ)	Max anode heat content(KHU)	Max anode continuous heat dissipation(W)
SRMWHX6410	0.3/0.6	5/17(50Hz)	130	10	RTM	2800	900	210	300
SRMWHX6411	0.6/1.3	11/32(50Hz)	130	15	RTM	2800	900	110	300
SRMWHX6412	0.8/1.8	12/33(50Hz)	130	15	RTM	2800	900	70	175
SRMWHX6460	0.6/1.3	11/33(50Hz)	130	15	RTM	2800/8400	900	110	300
SRMWHX6460	0.6/1.3	20/54(150Hz)	130	15	RTM	2800/8400	900	110	300
SRMWHX7010	1.0/2.0	21/42.5(50Hz)	125	16	RTM	2800	900	140	475
SRMWHX7110	0.6/1.2	20/40(50Hz	125	12.5	RTM	2800	900	150	500
SRMWHX7210	1.0/2.0	20/40(50Hz)	125	16	TM	2800	900	140	410
SRMWHX7220	1.0/2.0	20/40(50Hz)	150	16	TM	2800	900	140	410
SRMWHX7360	0.6/1.2	20/50(50Hz)	150	12	RTM	2800/8400	900	300	750
SRMWHX7360	0.6/1.2	30/74(150Hz)	150	12	RTM	2800/8400	900	300	750
SRMWHX7420	0.6/1.2	20/46(50Hz)	150	12	RTM	2800	900	150	475
SRMWHX7520	0.6/1.2	20/50(50Hz)	150	12	RTM	2800	900	220	750
SRMWHX7620	0.6/1.2	20/50(50Hz)	150	12	RTM	2800	900	300	870
SRMWHX7810	0.6/1.5	18/47.5(50Hz)	125	14	RTM	2800	900	200	410
SRMWHX9020	0.6/1.2	19/50(50Hz)	150	12	RTM	2800	1100	300	500
SRMWHX9120	1.0/2.0	30/50(50Hz)	150	16	RTM	2800	1100	200	490
