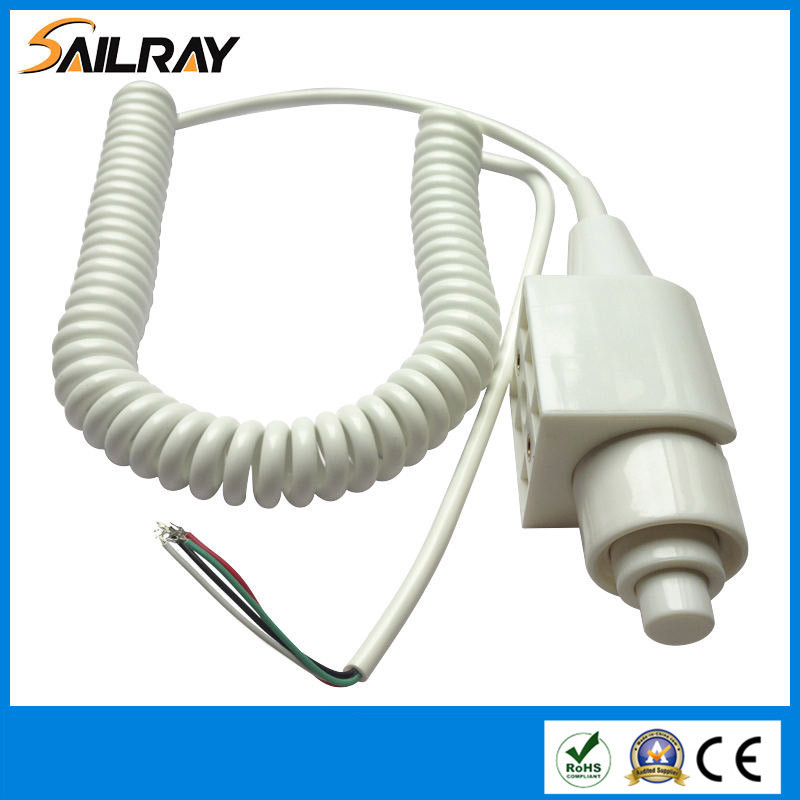

Two Step X-ray Push Button Switch with Omron Micro Button for Dental Machine

Description:

X-ray exposure Hand switch is the electric control parts, can be used for controlling the on-off of electrical signal, photographic equipment and medical diagnostic X-ray photography exposure. X-ray exposure Hand switch, used OMRON micro switch as component contacts, is a hand-held switch which has one stepping switches and with fixed trestle.

This type of x-ray exposure hand switch can be 2 cores or 3 cores. The coil cord length can be 2.2m or 5m after fully stretched. Its electrical life can reach to 100 thousand times while its mechanical life can reach to 1.0millioin times.

X-ray exposure Hand switch is comply with the national safety standards: GB15092.1-2003 "the first part of the medical electrical equipments: general requirements for safety" related provisions. Get CE, CQC, ROHSapproval.

Applications:

X-ray exposure Hand switch is the electric control parts, can be used for controlling the on-off of electrical signal, photographic equipment and medical diagnostic X-ray photography exposure

Quick Detail:

Model: HS-02

Type: Two Step

Construction and material: With Omron micro switch, PU coil cord cover and copper wires

Wires and coil cord: 3cores or 4cores, 2.2m or 5m

Mechanical life: 1.0 million times

Electrical life: 100 thousand times

Certification: CE, CQC, RoHS

Connector: can fixed to DB9 connector or Air plug

Competitive Advantage:

Better performance with Omron micro switch

Better elasticity of coil cord with PU cover and pure copper wire

Longer Mechanical life and Electrical life

CE, CQC, ROHS approval.

Performance Parameters( 3cores ) :

Comply with the national safety standards: GB15092.1-2003 "the first part of the medical electrical equipments: general requirements for safety" related provisions.

Type and Useful time:

Cores:.............................................................................3cores or 4cores,

Type: ..............................................................................Two step

Wire material:................................................................PU

Wire Sectional area.....................................................0.2mm2(24 gauge)

Useful time(Mechanical life): ....................................1.0 million times

Useful time(Electrical life):.........................................100 thousand times

Operation Method:

When pressing the button, it is connected while loosing it is cut.

Transportation and Storage Conditions:

More detail:

SAILRAY MEDICAL is a professional manufacturer and supplier of xray tube, x-ray exposure hand switch, x-ray collimator, lead glass, high voltage cables and so on related x-ray imaging systems in China. We specialized in x-ray filed for over 15years. With the over 15 years of experience, we supply products and service to lots of countries all over the world and get very good reputation.

Sailray medical owns two facilities in Zhejiang and Jiangsu Province which have the most advanced equipment composed of the production line of x-ray tube. With powerful technology background, we have an energetic team who are experienced engineers and technicians in x-ray field who design, develop and produce the products. By a rigorous team who make the quality control to ensure the high quality of our product lines, our products have got the certification of SFDA, ISO and got the approval of CE, ROHS, etc.

Sailray medical dedicated to offer solutions for products required todesign and manufacture the medical x-ray systems and industry x-ray

imaging systems. We are always your best and trust-able partner.
