Portable X Ray Collimator For CR DR Machine 24V / 150W Projection Lamp

    Buy cheap Portable X Ray Collimator For CR DR Machine 24V / 150W Projection Lamp from wholesalers

    Buy cheap Portable X Ray Collimator For CR DR Machine 24V / 150W Projection Lamp from wholesalers
    • Buy cheap Portable X Ray Collimator For CR DR Machine 24V / 150W Projection Lamp from wholesalers

    Portable X Ray Collimator For CR DR Machine 24V / 150W Projection Lamp

    Ask Lasest Price
    Brand Name : SAILRAY
    Model Number : SR202
    Payment Terms : T/T, Western Union
    Supply Ability : 100 per month
    Delivery Time : 30 work days
    Price : Negotiation
    • Product Details
    • Company Profile

    Portable X Ray Collimator For CR DR Machine 24V / 150W Projection Lamp

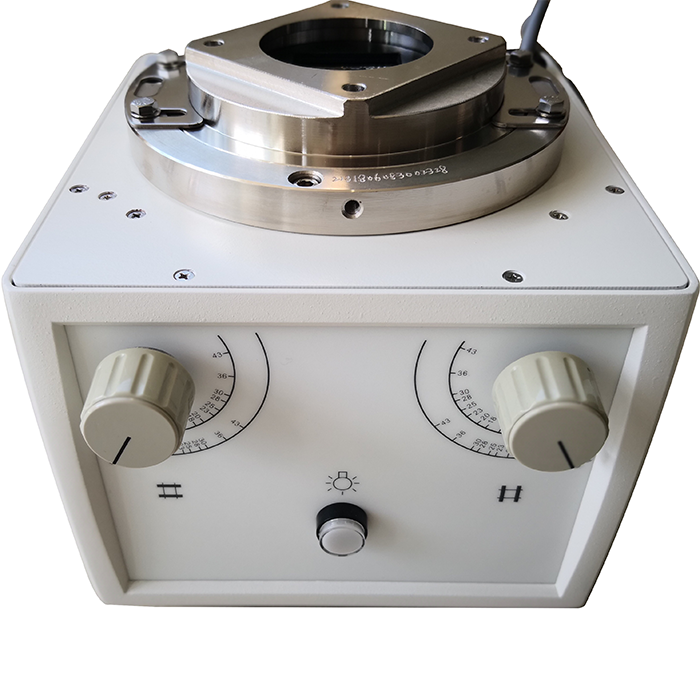

    Manual X-ray Beam Limiting Collimator for CR DR Machine SR202


    Technical parameters:

    Max Voltage150KV
    Maximum X-ray field coverage range440mm×440mm (SID=100cm)
    The average brightness of the light field>160 lux
    Edge contrast ratio>4:1
    Power supply requirement of projection lamp24V/150W
    Bright X-ray field duration for Once30S
    Distance from Focal Spot of X-ray tube to the mount plane of collimator SID (mm)(optional)60
    Filtration(Inherent) 75kV1mmAl
    Filtration(Additional)The outer optional
    Control methodManual
    Drive motor--
    Motor Control--
    Position detection--
    Input powerAC24V
    (SID)Measuring tapeStandard Configuration
    Center laser instructionsoptional
    Dimension(mm)(W×L×H)185×198×145
    Weight(Kg)6.8

    Detailed Images


    Quality Portable X Ray Collimator For CR DR Machine 24V / 150W Projection Lamp for sale
